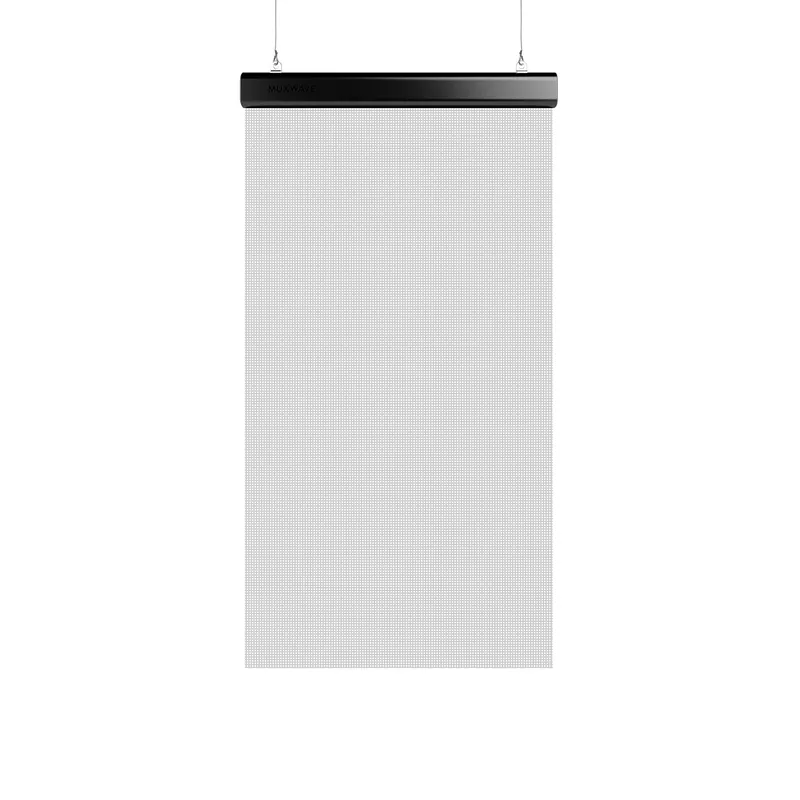

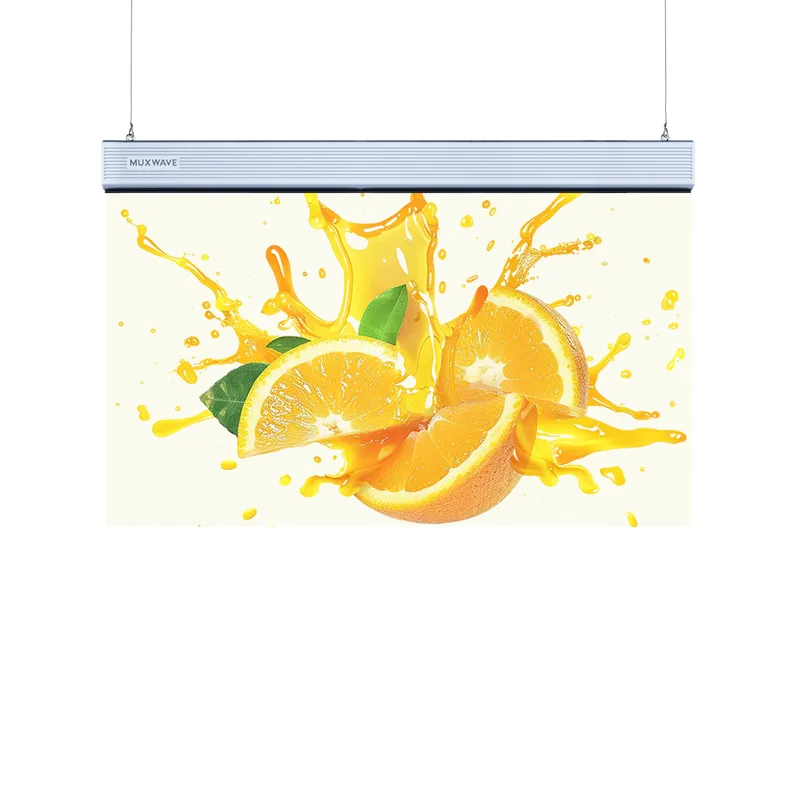

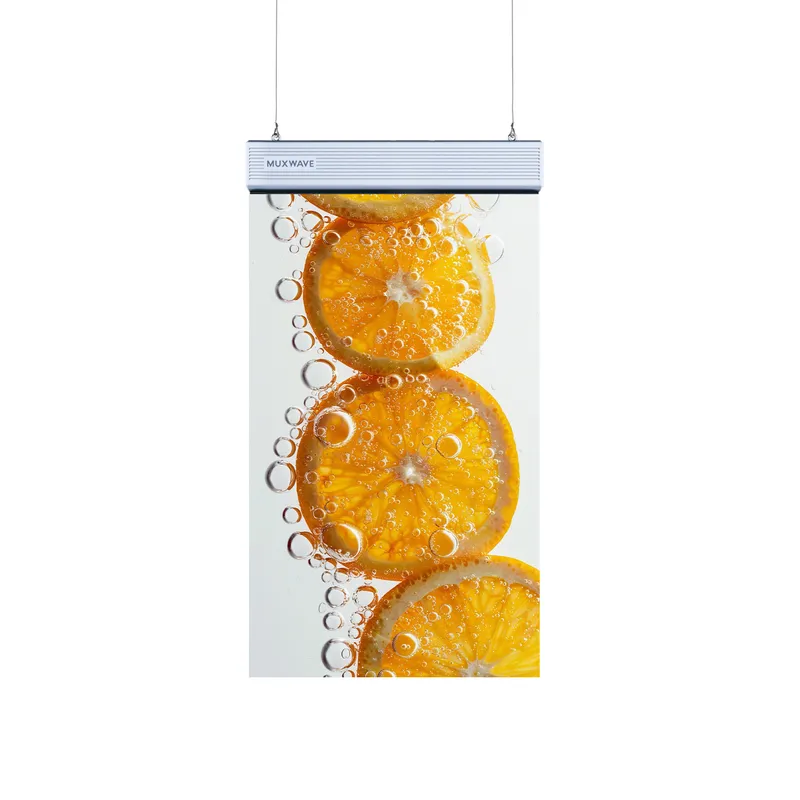

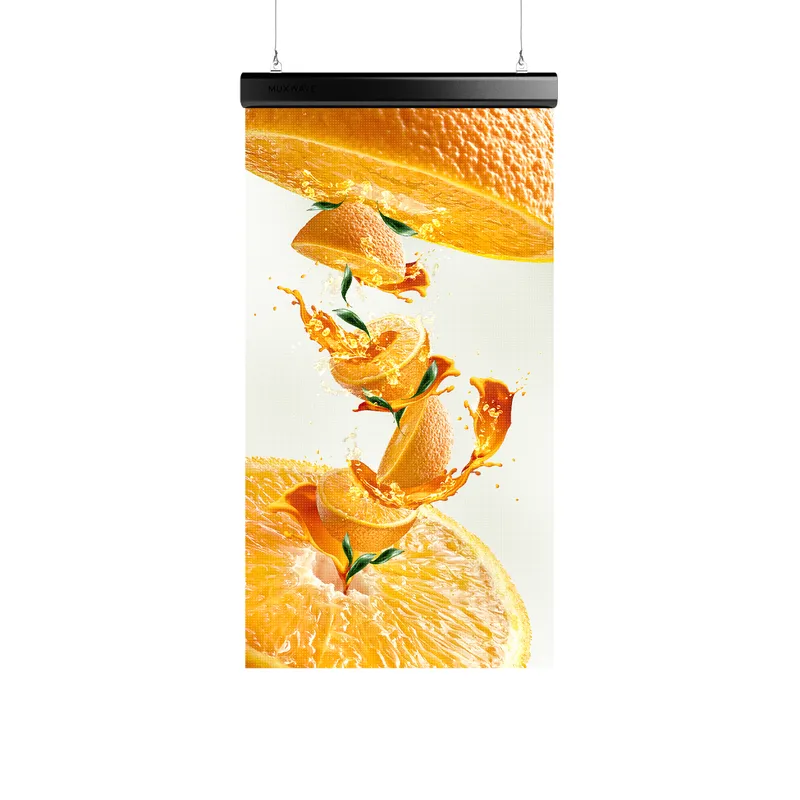

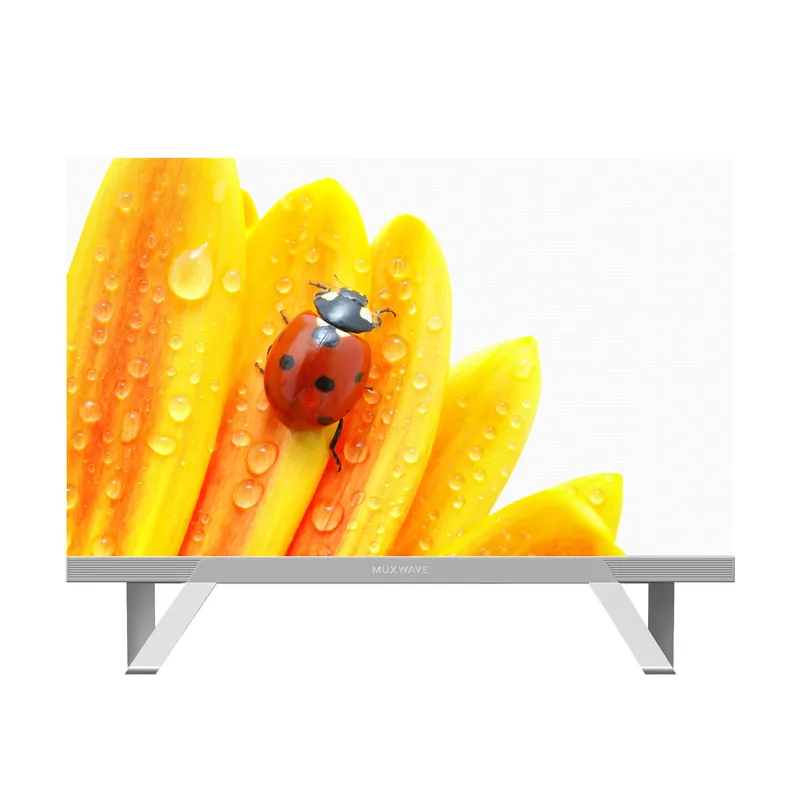

P Series – LED Poster
Standard all-in-one machine, built-in sending card, only one power supply cable, plug in and play.
Key Parameter
| Pixel pitch (mm) | P3.9 |
|---|---|
| Profile Dimension (mm) (w*h) | 750×1200/1000×1500 |
| Transparency Rate | 80% |
| Brightness(cd/m²) | ≥2000 |
Product advantages
Simultaneously achieving a seamless, non-segmented structure, full-screen transparency and invisibility and high-definition display LED display products!

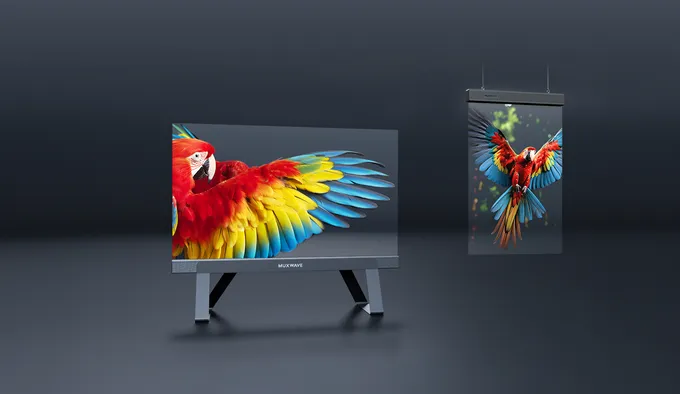

Standard all-in-one machine
Built-in sending card, only one power supply cable, plug in and play.

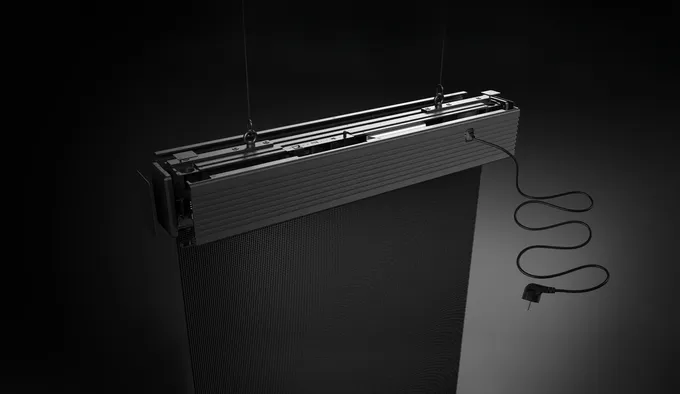

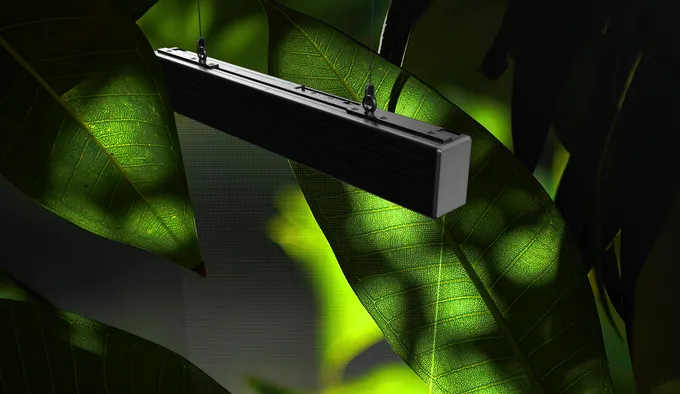

Minimal installation and maintenance
Standard hanging structure, easy installation, widely applied in different kinds of installation environment.

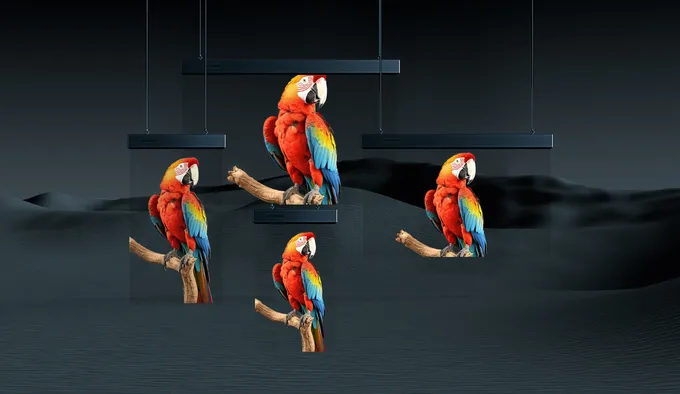

Free combined size
55″, 70″, 100″, 135″, to satisfy different display requirements.
Transparent and invisible whole screen
Whole screen transparent and invisible, it does not block any view and light.

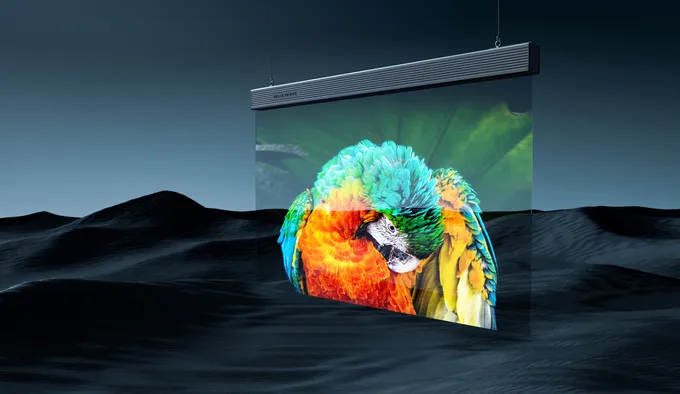

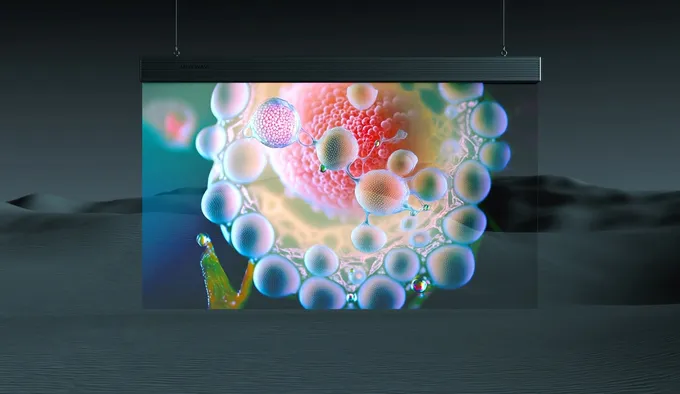

Floating image
Display effect of 3D holographic and bare-eye AR visual effect, eye-catching and attractive.
High-resolution display quality
Horizontal and vertical pixels equal spacing, Light/Driver Integrated, Picture Grayscale 16 bit.
Product advantages
Standard all-in-one machine, built-in sending card, only one power supply cable, plug in and play.
Standard hanging structure, easy installation, widely applied in different kinds of installation environment.
Free combined size, 55″, 70″, 100″, 135″, to satisfy different display requirements.
Whole screen transparent and invisible, it does not block any view and light.
Floating image, bare-eye AR visual effect, eye-catching and attractive.
High-resolution display quality, stable video and image, rich and delicate colors.
Specification parameters
| Model | P2- | P3- | P6- | |||||||||
| Screen Dimension(inch) | 90 | 80 | 70 | 55 | 90 | 80 | 70 | 55 | 90 | 80 | 70 | 55 |
| Display Dimension(mm) (w*h) | 2000*1175 | 1750*1000 | 1000*1475 | 750*1175 | 2000*1172 | 1750*1000 | 1000*1469 | 750*1172 | 2000*1175 | 1750*1000 | 1000*1475 | 750*1175 |
| Resolution (dot) (w*h) | 800*470 | 700*400 | 400*590 | 300*470 | 512*300 | 448*256 | 256*376 | 192*300 | 320*188 | 280*160 | 160*236 | 120*188 |
| Profile Dimension (mm)(w*h) | 2016*1292*78 | 1766*1117*78 | 1016*1592*78 | 766*1294*78 | 2016*1292*78 | 1766*1117*78 | 1016*1592*78 | 766*1291.5*78 | 2016*1292*78 | 1766*1117*78 | 1016*1592*78 | 766*1291.5*78 |
| LED Specification | 1515 | 2121 | 2121 | |||||||||
| Pixel Pitch (mm)(horizontal/ vertical) | 2.5-2.5 | 3.91-3.91 | 6.25-6.25 | |||||||||
| Pixel Density (dot/m²) | 160000 | 65536 | 25560 | |||||||||
| Transparency Rate | 85% | 92% | 95% | |||||||||
| Brightness(cd/m²) | ≥1200(Black Light) | ≥3000（Black Light）≥4500（White Light） | ≥4500（White Light） | |||||||||
| Maximum Power Consumption (w/m²) | 865 | 865 | 865 | |||||||||
| Average Power Consumption (w/m²) | 350 | 330 | 330 | |||||||||
| Color Temperature(K) | 3000~10000 | 3000~10000 | 3000~10000 | |||||||||
| Scanning Mode | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | |||||||||
| Frame Rate（Hz） | 60~120 | 60~120 | 60~120 | |||||||||
| Encapsulation Type | Light Board & Driving Board Integrated | Light Board & Driving Board Integrated | Light Board & Driving Board Integrated | |||||||||
| Lifespan | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ≥ 100,000.00 hours | |||||||||
| Pixel Configuration | 16bit | 16bit | 16bit | |||||||||
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | |||||||||
| Working Voltage for Module | DC4.2V ±0.2V | DC4.2V ±0.2V | DC4.2V ±0.2V | |||||||||
| Working Temperature | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | |||||||||
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | |||||||||
| Storage Temperature | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | |||||||||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | |||||||||
| Protection Degree | IP20 | IP20 | IP20 | |||||||||
| Installation Method | Hanging Up | Hanging Up | Hanging Up | |||||||||
| Installation Environment | Indoor | Indoor | Indoor | |||||||||
| Packing Way | Pearl Cotton+Carton/Flight Case | Pearl Cotton+Carton/Flight Case | Pearl Cotton+Carton/Flight Case | |||||||||
Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice.
