A Series – All in One LED screen
Easy to deliver, removable and mobile. A variety of installation methods such as lifting, vertical installation, lifting and vertical combination can be freely selected.
Key Parameter
| Pixel pitch (mm) | P3.9 |
|---|---|
| Profile Dimension (mm) (w*h) | Floor Standing:1021x2452x500/2021x2452x500 |
| Transparency Rate | 80% |
| Brightness(cd/m²) | ≥3000 |
Product advantages
Plug and play without assembly
Easy to deliver, detachable, removable.
Spatial floating image
3D Holography, Spatial floating image
HD display quality
Horizontal and vertical pixels equal spacing, Light/Driver Integrated, Picture Grayscale 16 bit.
High brightness and contrast
High brightness 5000cd/㎡
High contrast ratio 99:1
Ultra-high transparency
The display panel has no splicing structure, and the transparent display occupies more than 95% of the whole machine.
Multiple installation modes

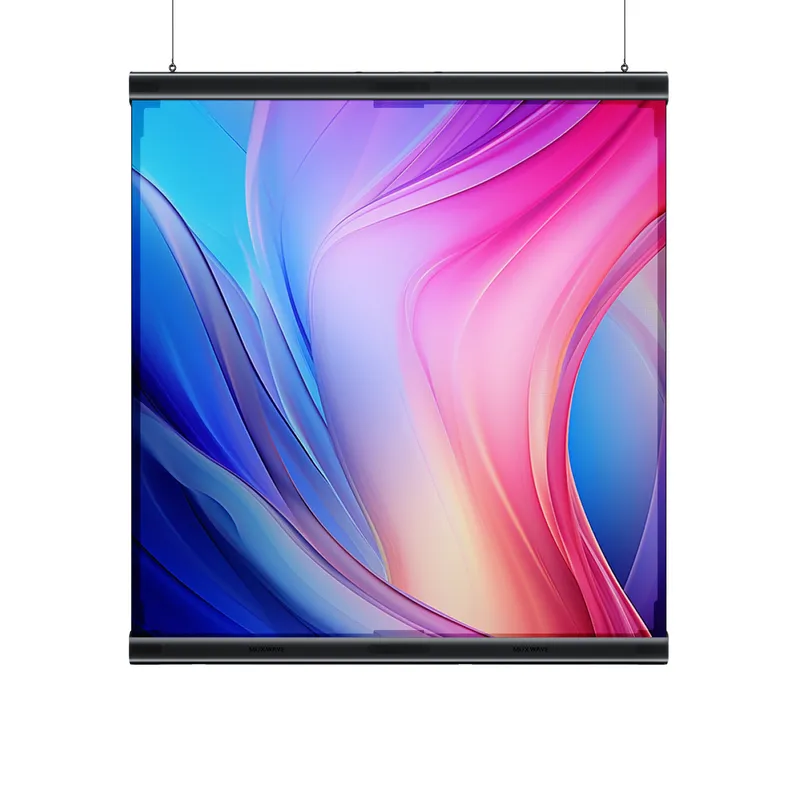

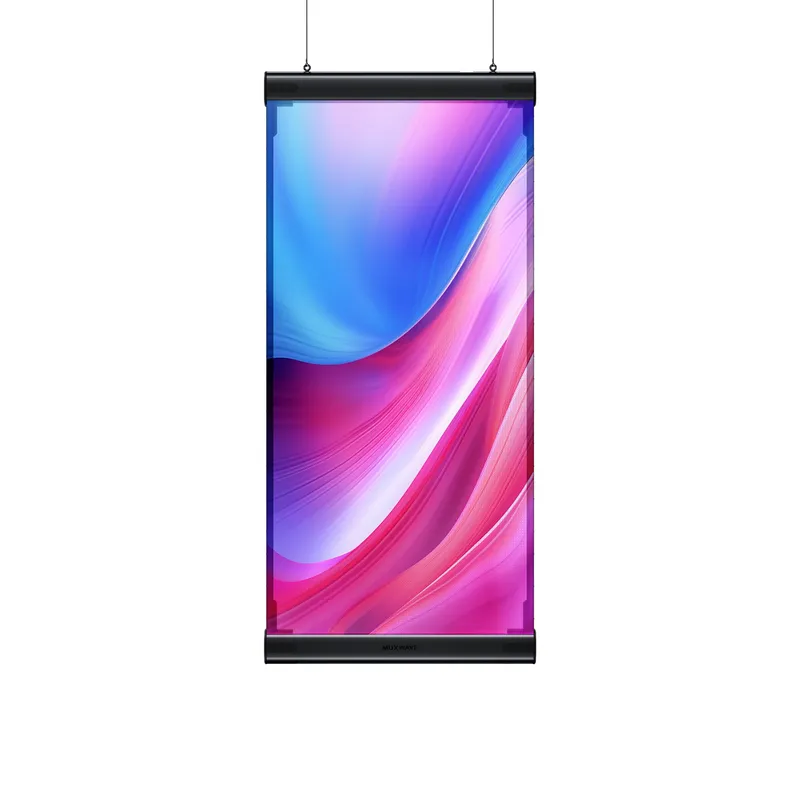

A variety of installation methods such as lifting, vertical installation, lifting and vertical combination can be freely selected.
Product advantages
Plug and play, no need for assembly, suitable for a variety of installation methods
Easy to deliver, removable and mobile. A variety of installation methods such as lifting, vertical installation, lifting and vertical combination can be freely selected.
Full screen transparent and invisible, without any obstruction to vision and lighting!
The display panel has no splicing structure, and the transparent display occupies more than 95% of the whole machine.
Hd display quality! This Screen has 260,000 pixels. Stable picture, rich and delicate color!
Horizontal and vertical pixels equal spacing, lamp drive integration static scanning, 16bit gray level.
Immersive floating imagery, naked-eye AR commercial display experience
With its unique design of full-screen transparency and invisibility, it is like a layer of clear dew. While bringing you an unparalleled high-end technology experience, it still maintains the visual effects and perfect penetration of light without any interference.
High brightness 5000cd/㎡
High contrast ratio 9000:1
Higher brightness helps enhance the brightness of the picture and bring the image closer to the effect of natural light.
Higher contrast can improve light and dark expression, improve the clarity and detail of the picture
Specification parameters
| Model | A3-2 | A3-4 | ||
| Screen Dimension(inch) | 158 | 113 | 236 | 188 |
| Display Dimension(mm) (w*h) | 3500*2000 | 2500*1469 | 5250*2950 | 4250*2350 |
| Resolution (dot) (w*h) | 896*512 | 640*376 | 840*472 | 680*376 |
| Profile Dimension (mm)(w*h) | 3520*2230*75 | 2520*1705*75 | 5270*3180*75 | 4270*2580*75 |
| LED Specification | 2121 | 2121 | ||
| Pixel Pitch (mm)(horizontal/ vertical) | 3.91-3.91 | 3.91-3.91 | ||
| Pixel Density (dot/m²) | 65536 | 65536 | ||
| Transparency Rate | 92% | 92% | ||
| Brightness(cd/m²) | ≥3000（Black Light）≥4500（White Light） | ≥3000（Black Light）≥4500（White Light） | ||
| Maximum Power Consumption (w/m²) | 865 | 865 | ||
| Average Power Consumption (w/m²) | 330 | 330 | ||
| Color Temperature(K) | 3000~10000 | 3000~10000 | ||
| Scanning Mode | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | ||
| Frame Rate（Hz） | 60~120 | 60~120 | ||
| Encapsulation Type | Light Board & Driving Board Integrated | Light Board & Driving Board Integrated | ||
| Lifespan | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ||
| Pixel Configuration | 16bit | 16bit | ||
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | ||
| Working Voltage for Module | DC4.2V ±0.2V | DC4.2V ±0.2V | ||
| Working Temperature | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | ||
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | ||
| Storage Temperature | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | ||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | ||
| Protection Degree | IP20 | IP20 | ||
| Installation Method | Floor Standing、Hanging Up | Floor Standing、Hanging Up | ||
| Installation Environment | Indoor | Indoor | ||
| Packing Way | Pearl Cotton+Wooden box/Flight Case | Pearl Cotton+Wooden box/Flight Case | ||
